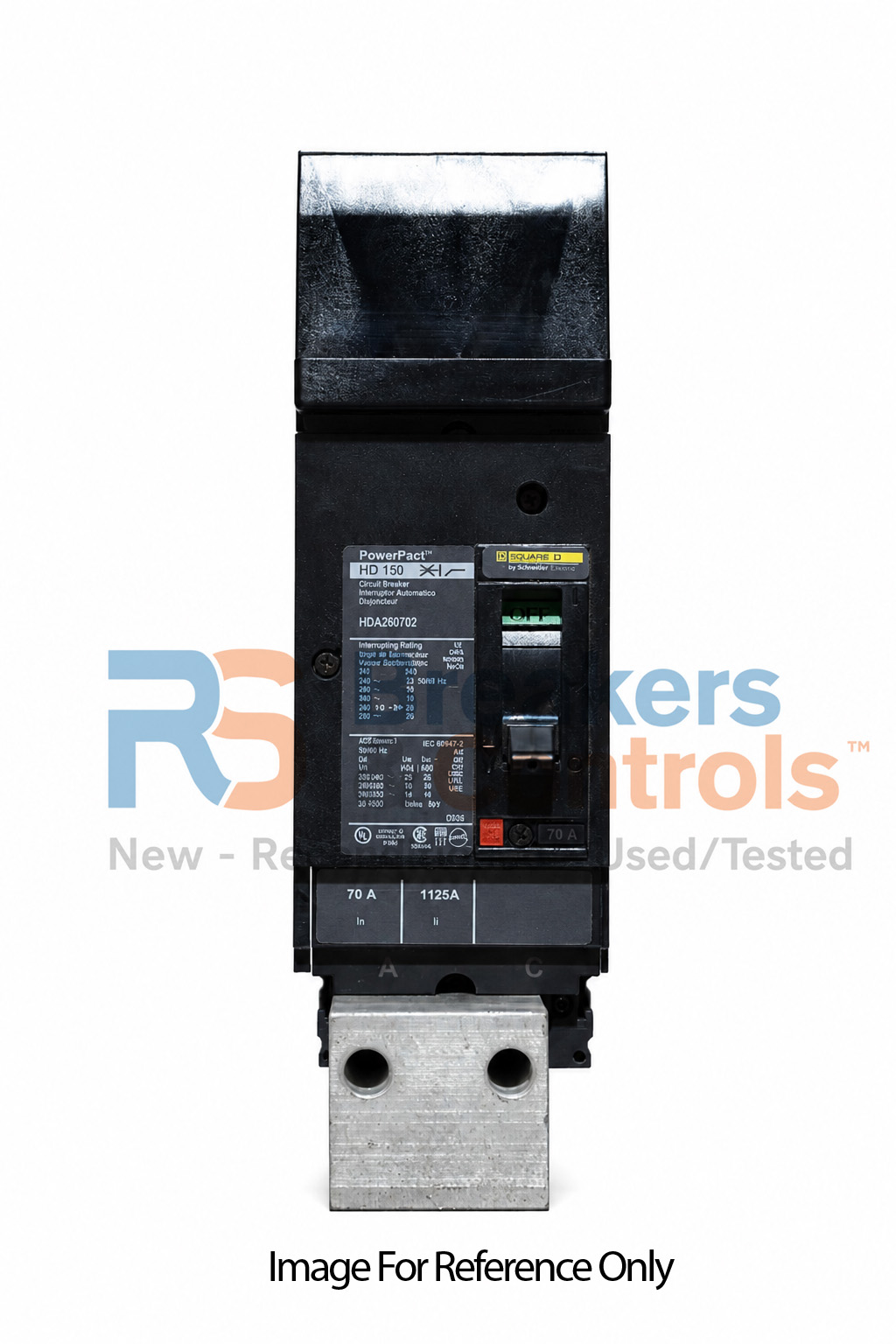

Square D PowerPact HDA26070 H-Frame 2P 70A MCCB I-Line
150A Frame | 70A | 2P | 25kA@240V, 18kA@480V, 14kA@600V | Thermal-Magnetic (Fixed)
Square D's PowerPact HDA26070 H-Frame circuit breaker provides 70A 2-pole circuit protection engineered for commercial and industrial electrical distribution systems. Featuring standard interrupting capacity rated at 25kA@240V, 18kA@480V, 14kA@600V and operating at 600V AC / 250V DC, this breaker delivers proven and reliable overcurrent protection performance. The HDA26070 incorporates a TMD (Thermal-Magnetic) trip unit for reliable overcurrent protection including thermal overload and magnetic instantaneous response capabilities. This proven trip technology provides fixed protection characteristics precisely optimized for the H-Frame platform, ensuring consistent and dependable circuit protection across a wide range of operating conditions and fault scenarios. This i-line plug-on breaker features i-line plug-on connections with I-Line Bus Connection terminations, accepting 14-3/0 AWG Al/Cu conductors for versatile wiring applications. With overall dimensions of 9.70" H x 3.00" W x 5.17" D and weighing ~6 lbs, the HDA26070 delivers H-Frame frame protection in a space-efficient package suitable for dense electrical equipment layouts. Compliant with UL 489, CSA C22.2 No.5, and IEC/EN 60947-2 international standards, the HDA26070 carries multiple certifications for worldwide acceptance and specification. Ideal for commercial buildings, industrial facilities, data centers, healthcare facilities, and critical infrastructure power distribution requiring reliable 70A 2-pole overcurrent protection. The HDA26070 exemplifies Schneider Electric's PowerPact platform engineering excellence, delivering consistent protection performance with robust construction designed for long service life in demanding environments.
Key Features
This PowerPact MCCB features Thermal-Magnetic (Fixed) trip protection rated 70A at 600V AC / 250V DC. Frame size: 150A. Interrupting capacity: 25kA@240V, 18kA@480V, 14kA@600V. Designed for reliable overcurrent protection in industrial and commercial power distribution systems.
Applications
Suitable for main distribution panels, motor control centers, switchboards, and feeder circuit protection in industrial facilities, data centers, and commercial buildings. Compliant with UL 489, CSA C22.2 No.5, IEC/EN 60947-2, NOM, CCC, CE.
