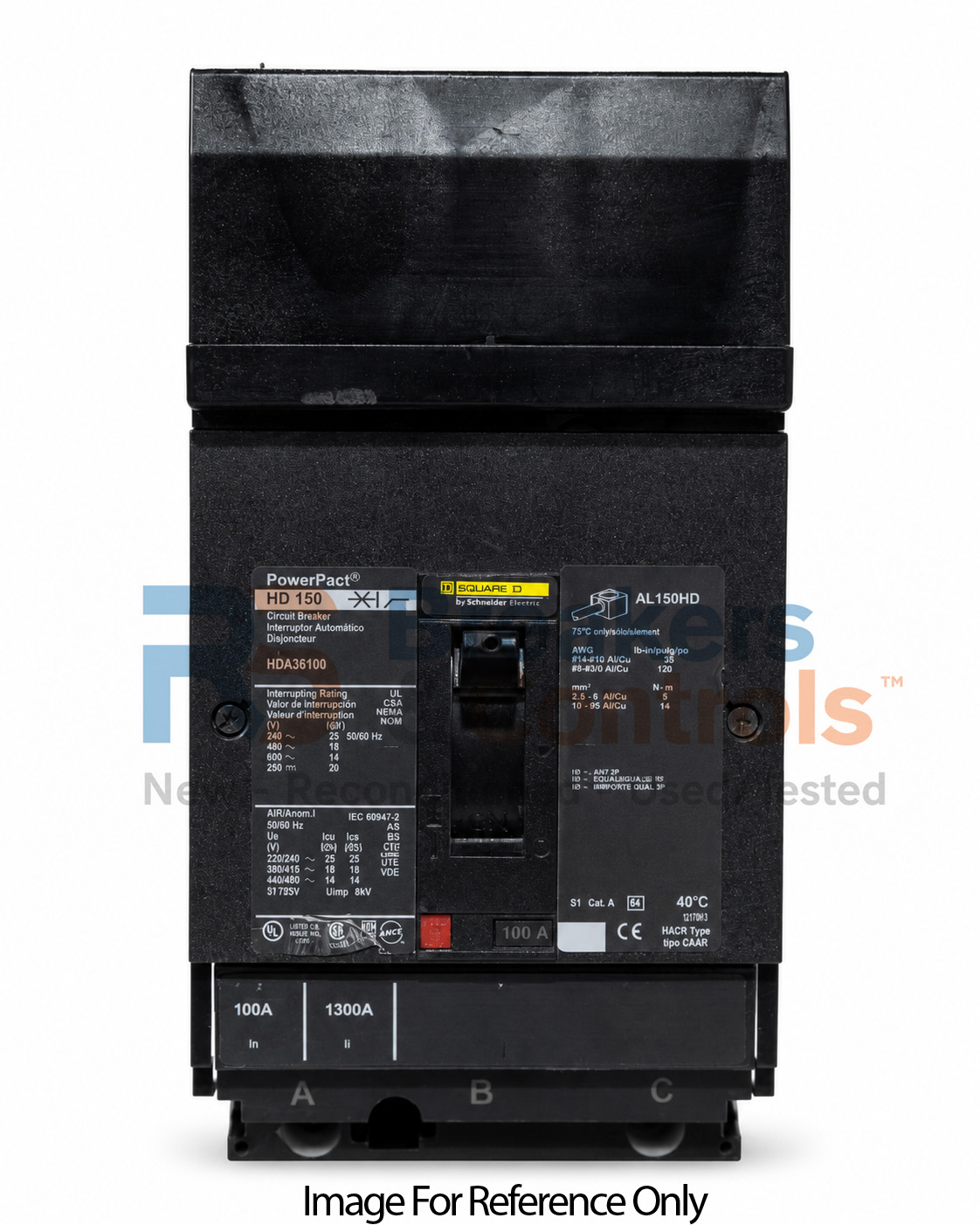

Square D PowerPact HDA36100 H-Frame 3P 100A MCCB I-Line
150A Frame | 100A | 3P | 25kA@240V, 18kA@480V, 14kA@600V | Thermal-Magnetic (Fixed)
Schneider Electric offers the Square D PowerPact HDA36100, a premium H-Frame 3-pole molded case circuit breaker delivering 100-ampere protection for critical electrical infrastructure and power distribution. With standard interrupting capacity of 25kA@240V, 18kA@480V, 14kA@600V, this MCCB operates at 600V AC / 250V DC to provide comprehensive and dependable circuit protection. Featuring a TMD (Thermal-Magnetic) trip unit, the HDA36100 delivers dependable thermal overload and magnetic short-circuit protection for continuous operation. The fixed trip characteristics are factory-calibrated for optimal protection performance, providing reliable overcurrent sensing and fast fault interruption across the full range of anticipated operating conditions. This i-line plug-on breaker features i-line plug-on connections with I-Line Bus Connection terminations, accepting 14-3/0 AWG Al/Cu conductors for versatile wiring applications. With overall dimensions of 9.70" H x 4.50" W x 5.17" D and weighing ~8 lbs, the HDA36100 delivers H-Frame frame protection in a space-efficient package suitable for dense electrical equipment layouts. UL 489 listed and CSA C22.2 No.5 certified, the HDA36100 meets IEC/EN 60947-2 international standards for global project specification and acceptance. Applications include feeder circuit protection, branch circuit protection, motor control center installations, panelboard and switchboard applications, and industrial power distribution systems requiring H-Frame frame-class protection capabilities. Backed by Schneider Electric's global expertise in power distribution solutions, the HDA36100 ensures dependable protection for critical electrical infrastructure with comprehensive factory warranty coverage and support.
Key Features
This PowerPact MCCB features Thermal-Magnetic (Fixed) trip protection rated 100A at 600V AC / 250V DC. Frame size: 150A. Interrupting capacity: 25kA@240V, 18kA@480V, 14kA@600V. Designed for reliable overcurrent protection in industrial and commercial power distribution systems.
Applications
Suitable for main distribution panels, motor control centers, switchboards, and feeder circuit protection in industrial facilities, data centers, and commercial buildings. Compliant with UL 489, CSA C22.2 No.5, IEC/EN 60947-2, NOM, CCC, CE.
